JSON Web Token (JWT) is an open standard (RFC 7519) that defines a compact and self-contained way for securely transmitting information between parties as a JSON object. JWT are widely used in authentication, authorization and information exchange. Among these use cases, the most common scenario for using JWT is for authorization purpose. Once a user is logged in, each subsequent request will include the JWT, allowing the user to access routes, services, and resources that are permitted with that token. You may start to ask why not using Session token. One reason is that the JWT is stateless compared with Session tokens, it means that the server side does not have to store the JWT in a centralized DB to perform the validation when a clients sends a request to the server, whereas, the server has to store the session cookies for validation purpose.

To understand the common implementation mistakes of JWT, we need first figure out the structure of the JWT token as most the implementation errors are caused by misunderstanding the structure of JWT token and how each component of JWT are used for.

Structure of JWT Token

A well-formed JWT consists of three concatenated Base64url-encoded strings, separated by dots (.):

• Header : contains metadata about the type of token and the cryptographic algorithms used to secure its contents. For example

{
  "alg": "HS256",
  "typ": "JWT",
  "kid": "path/value" //optional
}

• Payload : contains verifiable security statements, such as the identity of the user and the permissions they are allowed. An example of the payload could be

{
  "username": "test@example.com",
  "id": "new user"
}

• Signature : it is used to validate that the token is trustworthy and has not been tampered with. When you use a JWT. Signature is piece of encrypted data of the Header and Payload date by using certain encryption method (such as HMAC,SHA256) with a secret which should be residing on a server side.

HMACSHA256(
  base64UrlEncode(header) + "." +
  base64UrlEncode(payload),
  secret)

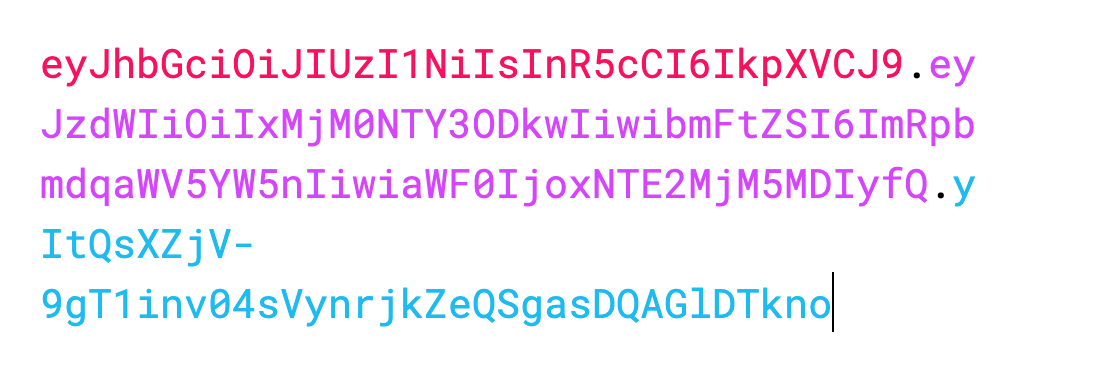

After putting all them together, a JWT looks like

Common Implementation Error

JWT itself is considered as secure method. Most of the security issues discovered against JWT are caused by implementation mistakes.

Leak the secret key

JWT is created with a secret key and that secret key is private to you which means you will never reveal that to the public or inject inside the JWT token. However, sometimes, the developers could mistakenly leak the signing secret to public. For example, the JWT signing secret is stored on a client side javascript functions or stored on a public accessible files. As a consequence, an attacker could bypass the signature verification easily as the attacker could sign any payloads with the secret to put the server side signature validation in vain. Here is one example listed under Hackerone where the developers are adding hardcoded secret in the client side javascript file.

Using Predictable secret key

It is also possible that the developers are copying a piece of code from a sample code base when implementing the JWT on the server side or they are using a simple word (not randomly generated complex string) as the secret value when implementing the JWT on the server side . A brute force attack could easily extract the secret key as the attacker knows the algorithm, the payload with the original information and the resulting signature of the encrypted payload and header. One example listed under Hackerone shows how a developer is using the ‘secret’ as the secret when implementing the JWT on the server side.

Broken JWT Validation

There are numerous way how the JWT validation could be broken during insecure implementation. Here are some typical examples where a broken JWT validation could happen.

• Not Validate Signature at all. Some developers implement the JWT validation in a wrong way, where they only decode the JWT payload part without validating the signature part before accepting the JWT as a valid token.
• Not Validate the JWT correctly if None alg is provided. An attacker could or creates a token by setting alg (the signing algorithm) to None in the header. If the server side is NOT validating whether the None alg was really implemented when the JWT was generated. As a consequence, any JWT provided by the attacker with a None value to the alg will be treated as a valid token. To prevent this, the server side should check whether the alg value is the one when the JWT token is generated. If not, the JWT should be treated as an invalid.
• Not Validate the JWT correctly when alg is changed to HS256 from RS256. HS256 is a symmetric encryption method, the server side is using the same key to generate and validate the JWT. Whereas, RS256 is an asymmetric encryption method, the JWT payload was signed with its private key and validated with the public key, which is known to the public. Now An attacker creates the token by setting the signing algorithm to a symmetric HS256 instead of an asymmetric RS256, leading the API to blindly verify the token using the HS256 algorithm using the public key as a secret key. Since the RSA public key is known, the attacker can correctly forge valid JWTs and bypass the validation method.

Lack of kid header parameter validation

The kid (key ID) Header Parameter is a hint indicating which key was used to secure the JWS. This parameter allows originators to explicitly signal a change of key to recipients. With the key identifier, the consumer of a JWT can retrieve the proper cryptographic key to verify the signature. This simple mechanism works well when both the issuer and consumer have access to the same cryptographic key store.

Since the attacker can modify the kid header parameter, attacker can supply any values in there when it is sent to the sever. If the server is not validating or sanitizing the kid value correctly, it could lead to severe damage.

For example, the kid value in the JWT header is specifying the location of the JWT secret to sign the JWT payload

{
  "alg": "HS256",
  "typ": "JWT",
  "kid": "http://localhost:3000/vault/privKey.key"
}

For example, the kid value in the JWT header is specifying the location of the JWT secret to sign the JWT payload

{
  "alg": "HS256",
  "typ": "JWT",
  "kid": "http://evil.com/privKey.key" //Private key supplied by the attacker
}

Now, if the attacker is providing his own private key to the kid parameter and adjust the JWT token, he would be able to generate any valid JWT token.

Other wrong implementation

The above implementation mistakes could lead to very severe security issues, for example, account hijacking and authentication bypass. There are some other implementation bad practice should be avoid when using JWT token.

• Use JWT token as session cookie. Some applications are using JWT token as a session cookie and it could cause havoc. Let’s say you have a token and you revoke it due to a user logout or any other action, you could not really invalidate the token before its expiration has been reached unless you keep a DB to store these tokens and build a revocation list, which is not the intention of using a stateless JWT.
• Leak the JWT in referrer header. It is common that a developer attaches the JWT in a URL, for example, user registering and password reset service, and the HTML page of the URL are loading some 3rd party web pages. As a consequence, the JWT could be leaked to 3rd party web pages via referer header if noreferrer is not probably deployed in the web application.

Conclusion

JWT are adopted by more and more applications over the web. If used correctly,  it could help you to build a robust and agile authentication, authorization and information key functions.However, if misused or implemented incorrectly, this technology may put entire systems at risk. This JWT Security Cheat Sheet provides an overview of all these best practices when using JWT in your applications.
